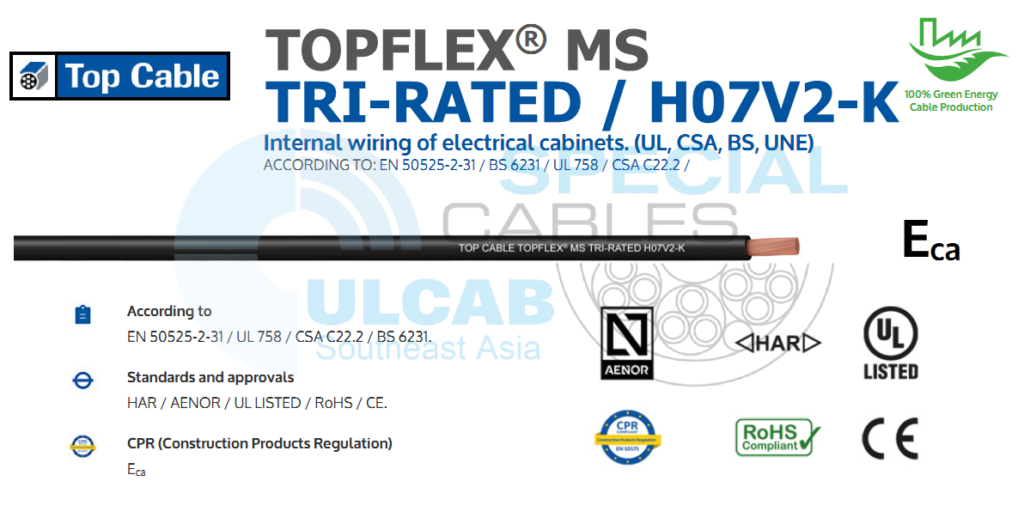

TOP CABLE TOPFLEX® MS TRI-RATED / H07V2-K / H05V2-K
Internal wiring of electrical cabinets. (UL, CSA, BS, UNE…). / Đi dây bên trong tủ điện. (UL, CSA, BS, UNE…).
Hãng sản xuất: TOP CABLE
Xuất Xứ: Spain
TOPFLEX MS Tri-rated H07V2-K cable has been designed for the internal wiring of electrical cabinets, switchboards and small electrical devices. Due to its manufacturing characteristics, it can be used in conduit or in flexible motor ducts, transformers and other machinery in general.
TOPFLEX MS TRI-RATED cable performance
Electrical performance
LOW VOLTAGE
H05V2-K 300/500 V · H07V2-K 450/750 V · CK 600/1000 V · AWM 600V · TEW 600V
Standard
EN 50525-2-31 / UL 758 / CSA C22.2 / BS 6231
Approvals
AENOR / HAR/ UL LISTED/ CE / RoHS
Construction Product Regulation
Eca
Thermal performance
Maximum service temperature: 90ºC s/HD according to EN and BS, 105ºC s/UL according to UL and CSA.
Maximum short-circuit temperature: 160ºC (max. 5 s).
Minimum service temperature: -40ºC (fixed and protected installations)
Fire performance
Flame non-propagation based on UNE-N 60332-1 / IEC 60332-1 and VW-1, FT1 and FT2 according to UL 2556.
Reaction to fire CPR: Eca according to EN50575.
Mechanical performance
Minimum bending radius: x5 cable diameter.
Chemical performance
Chemical & Oil resistance: Acceptable.
Water performance
Water resistance: AD3 Sprays
Other
Meter by meter marking (from 10 mm2 onwards).
Installation conditions
In conduit.
Applications
Electrical panel wiring.
Industrial use.
Packaging
These cables are supplied in 100 m reels, barrels or bulk drums (see table below).
CROSS-SECTION PACKAGING
0,50-6 mm2 100 m reels (or barrels upon request)
10-16 mm2 100 m reels or bulk drums
25 mm2 onwards bulk drums
TOPFLEX MS TRI-RATED cable design
Conductor
Electrolytic copper, class 5 (flexible), based on EN60228 / IEC 60228 and BS 6360.
Insulation
Flexible PVC, extra sliding, high service temperature type TI3 according to UNE 21031/HD 21 and Class 43 UL 1581.
The standard identification of insulated conductors is the following:
Light Blue – Xanh lam (RAL 5012) ; Brown – Nâu (RAL 8003) ; Black – Đen (RAL 9005) ; Red – Đỏ (RAL 3000) ; Green/Yellow – Xanh lục/vàng (RAL 1021 / RAL 6018) ; Grey – Xám (RAL 7000) ; Dark Blue – Xanh đậm (RAL 5010) ; White – Trắng (RAL 9010) ; Orange – Cam (RAL 2003) ; Purple – Tím (RAL 4005) ; Pink – Hồng (RAL 3015) ; Yellow – Vàng (RAL 1021) ; Green – Xanh lá (RAL 6018) ; Beige – Be (RAL 1001) .
TOP CABLE TOPFLEX® MS TRI-RATED / H07V2-K / H05V2-K
| Section (mm2) |
AWG | EN 50525-2-31 | BS 6231 | UL 758 | UL 2556 | CSA 22.2 |
| 0,5 | 22 | H05V2-K | CK | Style 1015 | FT2 | Type TEW |
| 0,75 | 20 | H05V2-K | CK | Style 1015 | FT2 | Type TEW |
| 1 | 18 | H05V2-K | CK | Style 1015 | FT2 | Type TEW |
| 1,5 | 16 | H07V2-K | CK | Style 1015 | FT2 | Type TEW |
| 2,5 | 14 | H07V2-K | CK | Style 1015 | FT2 | Type TEW |
| 4 | 12 | H07V2-K | CK | Style 1015 | FT2 | Type TEW |
| 6 | 10 | H07V2-K | CK | Style 1015 | FT2 | Type TEW |
| 10 | 8 | H07V2-K | CK | Style 1028 | FT2 – VW-1 | Type TEW |
| 16 | 6 | H07V2-K | CK | Style 1283 | FT2 – VW-1 | Type TEW |
| 25 | 4 | H07V2-K | CK | Style 1283 | FT2 – VW-1 | Type TEW |
| 35 | 2 | H07V2-K | CK | Style 1283 | FT2 – VW-1 | Type TEW |
| 50 | 1 | 07V2-K | CK | Style 1284 | FT2 – VW-1 | Type TEW |
| 70 | 2/0 | 07V2-K | CK | Style 1284 | FT2 – VW-1 | Type TEW |
| 95 | 3/0 | 07V2-K | CK | Style 1284 | FT2 – VW-1 | Type TEW |
| 120 | 4/0 | 07V2-K | CK | Style 1284 | FT2 – VW-1 | Type TEW |
| 150 | 250 MCM | 07V2-K | CK | Style 1284 | FT2 – VW-1 | — |
| 185 | 350 MCM | 07V2-K | CK | Style 1284 | FT2 – VW-1 | — |
| 240 | 450 MCM | 07V2-K | CK | Style 1284 | FT2 – VW-1 | — |
| 300 | 550 MCM | 07V2-K | — | Style 1284 | FT2 – VW-1 | — |
| 400 | 750 MCM | 07V2-K | — | Style 1284 | FT2 – VW-1 | — |
Equivalences and designation applicable for every size and standard
| Cross-Section (mm2) |
Diameter (mm) |
Weight (kg/km) |
Current (A) 2 cond. 1 |
Current (A) 3 cond. 1 |
Voltage drop (V/A · km) 2 |
| 1 x 0,5 | 2,5 | 10 | 12 | 10 | 99,5 |
| 1 x 0,75 | 2,7 | 13 | 15 | 13 | 66,6 |
| 1 x 1 | 2,8 | 15 | 18 | 16 | 49,9 |
| 1 x 1,5 | 3 | 20 | 23 | 20 | 34 |
| 1 x 2,5 | 3,5 | 30 | 31 | 28 | 20,4 |
| 1 x 4 | 4 | 45 | 42 | 37 | 12,7 |
| 1 x 6 | 4,6 | 65 | 54 | 48 | 8,45 |
| 1 x 10 | 6,4 | 115 | 75 | 66 | 4,89 |
| 1 x 16 | 8,1 | 180 | 100 | 88 | 3,1 |
| 1 x 25 | 9,5 | 265 | 133 | 117 | 2 |
| 1 x 35 | 10,6 | 355 | 164 | 144 | 1,42 |
| 1 x 50 | 13,1 | 505 | 198 | 175 | 0,99 |
| 1 x 70 | 14,8 | 685 | 253 | 222 | 0,696 |
| 1 x 95 | 16,6 | 890 | 306 | 269 | 0,527 |
| 1 x 120 | 17,8 | 1.115 | 354 | 312 | 0,412 |
| 1 x 150 | 20,2 | 1.400 | 393 | 342 | 0,33 |
| 1 x 185 | 21,9 | 1.675 | 449 | 384 | 0,27 |
| 1 x 240 | 24,3 | 2.180 | 528 | 450 | 0,205 |
| 1 x 300 | 27,7 | 2.790 | 603 | 514 | 0,164 |
| 1 x 400 | 31,6 | 3.650 | 725 | 620 | 0,124 |
1 Reference method B1 for 90°C insulation cables according to IEC 60364-5-52 in open air at 30°C ambient temperature.
2 At maximum service temperature, cosj=1 and single-phase circuit.
