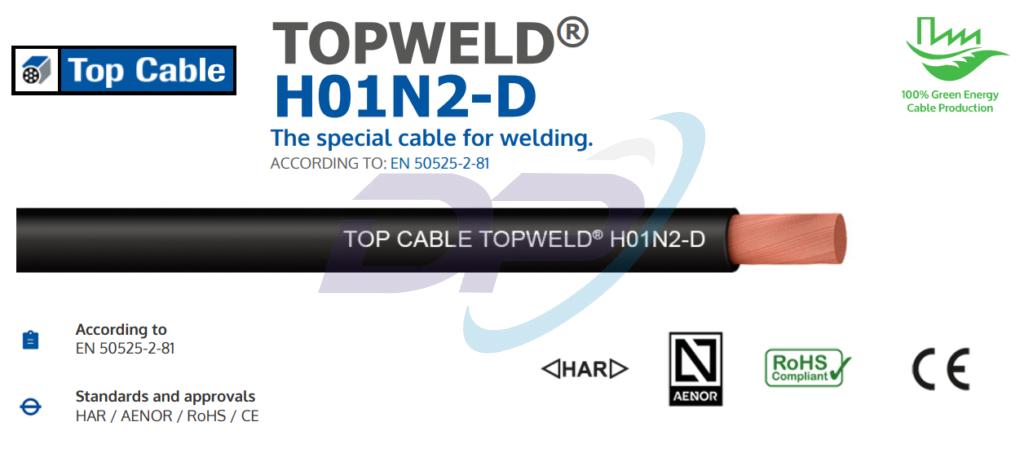

TOP CABLE TOPWELD H01N2-D
The special cable for welding. / Cáp đặc biệt để hàn.
Hãng sản xuất: TOP CABLE
Xuất Xứ: Spain
TOPWELD H01N2-D is a harmonized, flexible, rubber welding cable specially designed for transmitting high currents between the welding generator and the electrode. Its flexibility makes using the welding tool easier and also prevents knots from forming in the cable that could cause the internal conductor to break. It can also be used in automatic welding and machine tools, conveyor systems and production or assembly lines, for example in automobile assembly lines.
TOPWELD H01N2-D cable performance
Electrical performance
LOW VOLTAGE 100/100V
Standard
EN 50525-2-81
Approvals
AENOR / HAR / CE / RoHS
Thermal performance
Maximum conductor temperature: 85ºC.
Maximum short-circuit temperature: 250ºC (max. 5 s).
Minimum service temperature: -20ºC (mobile use).
Fire performance
Flame non-propagation based on EN 60332-1 and IEC 60332-1.
Mechanical performance
Minimum bending radius: x5 cable diameter.
Impact resistance: AG2 Medium severity.
Chemical performance
Chemical & Oil resistance: Excellent.
Grease & mineral oils resistance: Excellent
Other
Meter by meter marking.
Installation conditions
Open Air.
Applications
Welding.
Industrial use.
Mobile use.
Robotics.
Conveyors.
TOPWELD H01N2-D cable design
Conductor
Electrolytic annealed copper, class D (extra-flexible), based on EN 50525-2-81.
Insulation
Flexible rubber type EM5, according to EN 50363-2-2. Black color.
TOP CABLE TOPWELD H01N2-D
| Cross-section (mm2) |
Diameter (mm) |
Weight (kg) |
Current rating (A) for single cycle for 5 min. | Voltage drop (V/A · km) 1 |
|||
| 100% | 85% | 60% | 35% | ||||
| 1 x 10 | 8,0 | 140 | 100 | 103 | 103 | 103 | 2,450 |
| 1 x 16 | 9,1 | 195 | 135 | 145 | 145 | 145 | 1,560 |
| 1 x 25 | 10,3 | 280 | 180 | 195 | 195 | 195 | 0,998 |
| 1 x 35 | 11,4 | 375 | 245 | 245 | 245 | 245 | 0,709 |
| 1 x 50 | 13,4 | 520 | 285 | 305 | 305 | 305 | 0,493 |
| 1 x 70 | 15,5 | 725 | 355 | 380 | 380 | 380 | 0,348 |
| 1 x 95 | 17,4 | 945 | 430 | 470 | 470 | 470 | 0,264 |
| 1 x 120 | 19,3 | 1.195 | 500 | 540 | 540 | 540 | 0,206 |
| 1 x 150 | 21,4 | 1.475 | 580 | 630 | 630 | 630 | 0,166 |
| 1 x 185 | 23,3 | 1.78 | 665 | 720 | 720 | 720 | 0,136 |
Current-carrying capacities, in amperes, are calculated according to HD 516 and it is supposed an ambient temperature of 25 °C and single
on-load period not exceeding 5 minutes. The on-load time period is expressed as a percentage of five minutes.
1 For 10 metres of cable carrying 100 A. At 85°C conductor temperature and for direct current.
