Cáp Cao Su TOP CABLE 450/750V TOXFREE ZH XTREM H07ZZ-F (AS) BLACK | Chính Hãng – Khả năng chống nước: AD7 – Halogen free – Giá Tốt Nhất
Hãng sản xuất: TOP CABLE
Xuất Xứ: Spain
The extra-flexible LSZH rubber cable for mobile service./ Cáp cao su LSZH siêu dẻo dành cho dịch vụ di động.
TOXFREE ZH Xtrem H07ZZ-F (AS) is a flexible cable for mobile service, suitable for installations where low smoke and halogen free fumes under fire conditions are required. Suitable for installations where the cable must withstand medium mechanical stress, for machines in industrial and agricultural workshops, for motors and transportable machines on construction sites, for windmills and for agricultural applications.
TOXFREE ZH XTREM H07ZZ-F (AS) cable performance
Electrical performance
LOW VOLTAGE 450/750 V
Standard
EN 50525-3-21
Standards and approvals
AENOR / HAR / CE / UKCA
Construction Products Regulation (CPR)
B2ca-s2b, d1, a1 (according to cross-section)
Thermal performance
Maximum conductor temperature: 90ºC.
Maximum short-circuit temperature: 250ºC (max. 5 s).
Minimum service temperature: -40ºC (fixed and protected installations).
Fire performance
Flame non-propagation based on EN 60332-1 and IEC 60332-1.
Fire non-propagation based on EN 60332-3 and IEC 60332-3.
Low smoke emission based on EN 61034 and IEC 61034: Light transmittance > 60%
Low corrosive gases emission based on UNE-EN 60754-2 and IEC 60754-2.
Reaction to fire CPR: B2ca-s1b, d1, a1 or Cca-s1b, d2, a1 according to EN 50575.
Mechanical performance
Minimum bending radius: 3x cable diameter <12 mm. 4x cable diameter≥12 mm.
Impact resistance: AG2 Medium severity.
Chemical performance
Chemical & Oil resistance: Excellent.
Grease & mineral oils resistance: Excellent.
Water performance
Water resistance: AD7 Immersion.
Other
Meter by meter marking.
Installation conditions
Open Air.
In conduit.
Applications
Industrial use.
Mobile use.
Wind turbines.
TOXFREE ZH XTREM H07ZZ-F (AS) cable design
Conductor
Electrolytic annealed copper, class 5 (flexible), based on EN 60228 and IEC 60228.
Insulation
LSHF Rubber type EI8 according to EN 50363- 5.
The standard identification of insulated conductors is the following:
1 x Natural
2 x Blue + Brown
3 G Blue + Brown + Yellow/Green
4 G Brown + Black + Grey + Yellow/Green
5 G Brown + Black + Grey + Blue + Yellow/Green
6 or more Black numbered + Yellow/Green
Outer sheath
Low Smoke halogen free (LSHF) rubber type EM8 according to EN 50363-6. Black color.

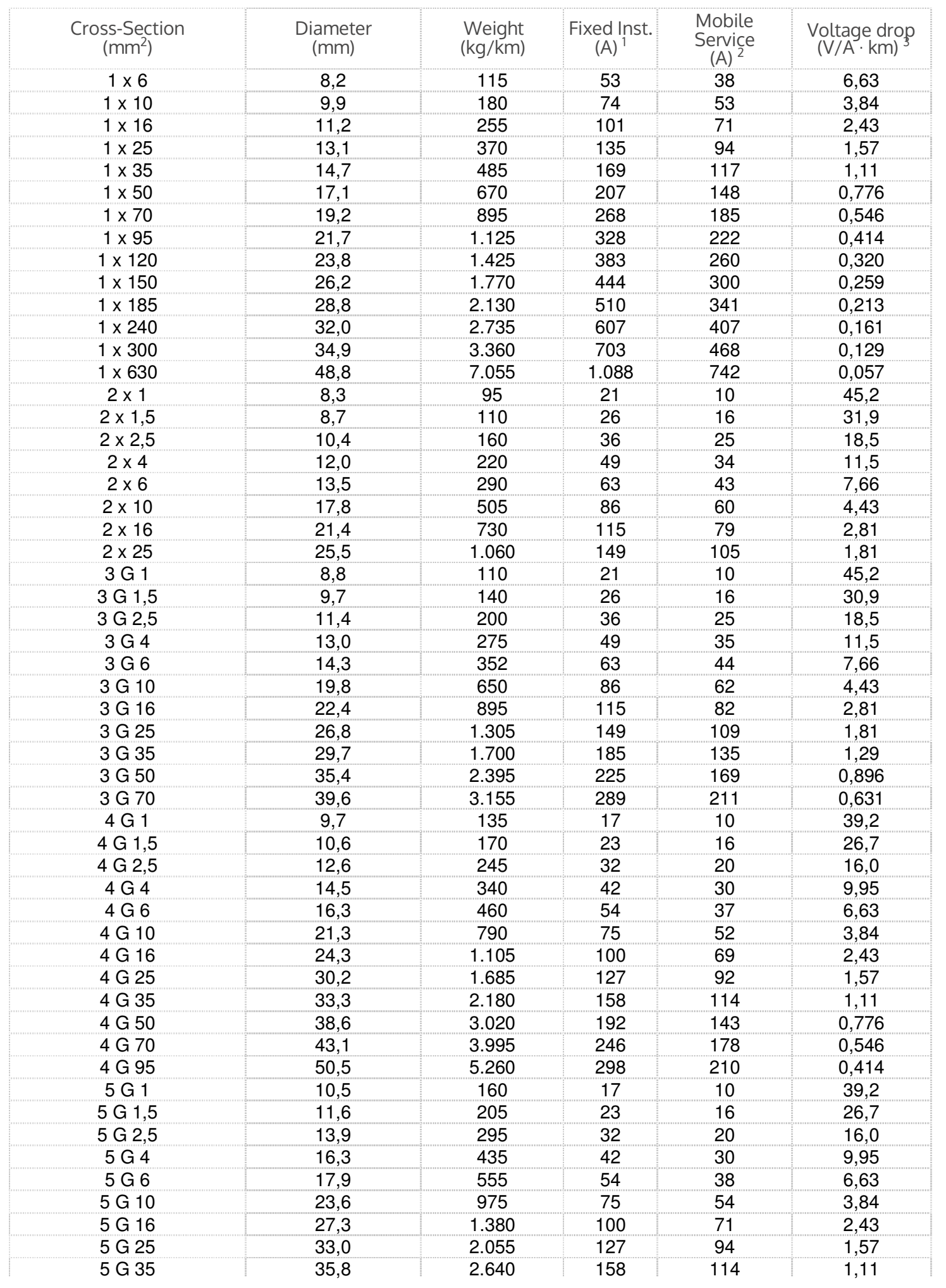

DIMENSIONS & ADMISSIBLE INTENSITIES
1 Reference method F for single-core and method E for multicore cables according to IEC60364-5-52 in open air at 30°C ambient temperature.
2 One cable in open air at 30°C ambient temperature according to EN 50565.
3 At 60°C conductor temperature and cos φ= 1.
For cables having 2 or 3 cores, it is supposed a single-phase circuit. For the rest of the cables it is supposed a three-phase circuit.
