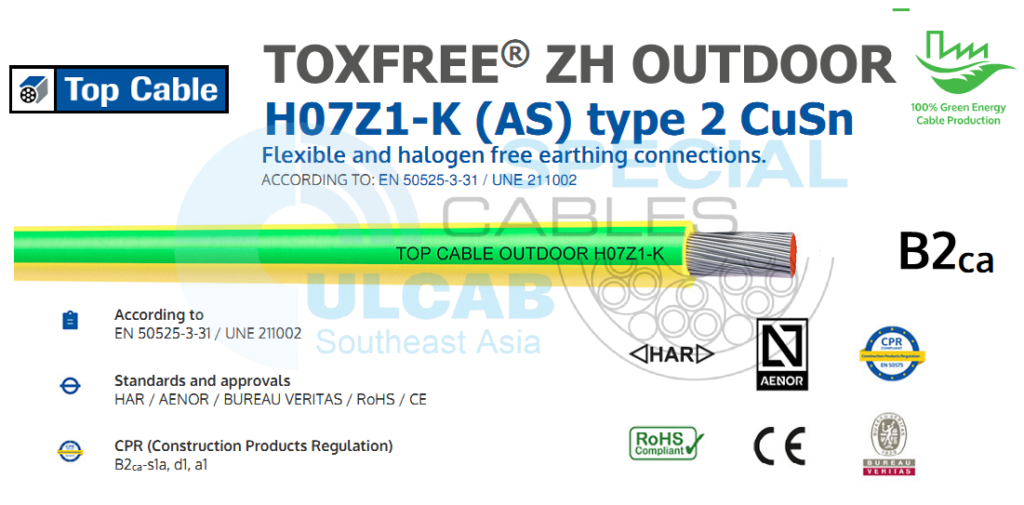

TOP CABLE TOXFREE® ZH OUTDOOR H07Z1-K (AS) Cu/Sn
Solar grounding cable, with tinned copper conductor. / Cáp nối đất năng lượng mặt trời, có dây dẫn bằng đồng mạ thiếc.
Hãng sản xuất: TOP CABLE
Xuất Xứ: Spain
Toxfree® ZH Outdoor H07Z1-K (AS) Cu/Sn is a cable specially designed for ground connections in outdoor installations. The tinned copper conductor and special outer sheath compounds make this cable highly resistant to corrosion and ultraviolet (UV) degradation and prevent galvanic pair when connecting metals of different normal potential. It is a halogen-free cable with the highest CPR classification (B2ca-s1a,d1,a1) and UV protection according to solar standard EN 50618.
TOXFREE® ZH OUTDOOR H07Z1-K (AS) Cu/Sn cable performance
Electrical performance
LOW VOLTAGE 450/750 V
Standard
EN 50525-3-31 / UNE 211002
Approvals
AENOR / HAR / CE / RoHS / BUREAU VERITAS
CPR Construction Products Regulation
B2ca s1a, d1, a1
Thermal performance
Maximum conductor temperature: 70ºC
Maximum short-circuit temperature: 160ºC (max. 5 s).
Minimum service temperature: -40ºC (fixed and protected installations).
Fire performance
Flame non-propagation according to EN 60332-1 and IEC 60332-1.
Fire non-propagation according to EN 60332-3-24 and IEC 60332-3-24 and EN 50399.
LSHF (Low Smoke Halogen Free) according to EN 60754-1 and IEC 60754-1.
Low smoke emission according to EN 61034 and IEC 61034: Light transmittance > 80%
Low corrosive gases emission according to EN 60754-2 and IEC 60754-2.
Reaction to fire CPR: B2ca s1a, d1, a1 , according to EN 50575.
Mechanical performance
Minimum bending radius: x5 cable diameter.
Chemical performance
Chemical & Oil resistance: Excellent.
Water performance
Water resistance: AD3 Sprays.
Other
Meter by meter marking. (from 10mm2 onwards)
Installation conditions
In conduit.
Packaging
High-resistant boxes and drums.
TOXFREE ZH OUTDOOR H07Z1-K (AS) Cu/Sn cable design
Conductor
Electrolytic annealed tinned copper, class 5 (flexible), based on EN 60228 and IEC 60228.
Insulation
UV resistant polyolefin, type TI7 according to EN 50363-7.
The standard identification of insulated conductors is the following:
Yellow/Green RAL 6018 / 1021
Other colours available on request
TOP CABLE TOXFREE® ZH OUTDOOR H07Z1-K (AS) Cu/Sn
| Cross-section (mm2) |
Diameter (mm) |
Weight (Kg/km) |
In conduit 30ºC (A) |
Open air 30ºC (A) |
Voltage drop (V/A · km) |
| 1 x 4 | 4,1 | 45 | 32 | 28 | 12,2 |
| 1 x 6 | 4,7 | 65 | 41 | 36 | 8,11 |
| 1 x 10 | 6 | 105 | 57 | 50 | 4,66 |
| 1 x 16 | 7 | 160 | 76 | 68 | 2,97 |
| 1 x 25 | 8,8 | 245 | 101 | 89 | 1,9 |
| 1 x 35 | 9,9 | 335 | 125 | 110 | 1,35 |
| 1 x 50 | 11,7 | 480 | 151 | 134 | 0,94 |
