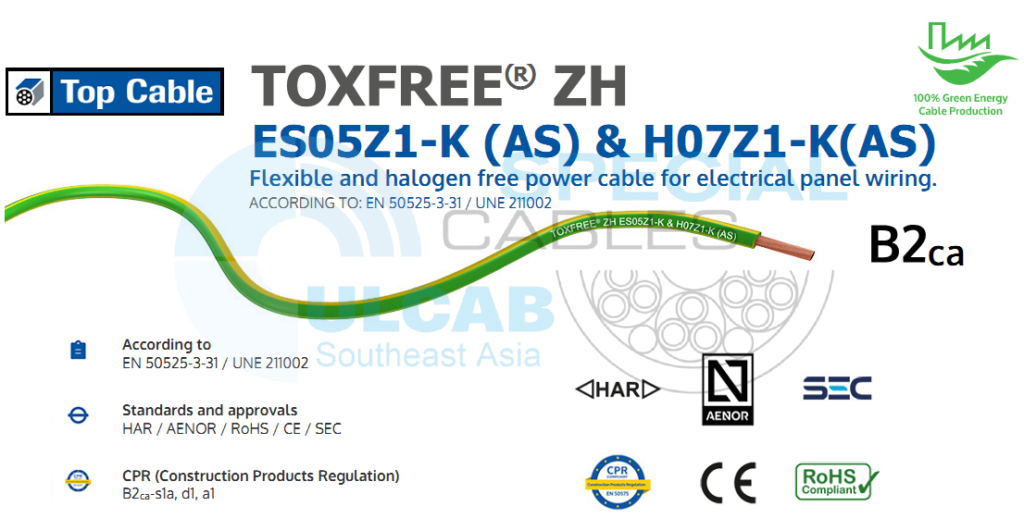

TOP CABLE TOXFREE® ZH ES05Z1-K (AS) & H07Z1-K(AS)
Flexible and halogen free power cable for electrical panel wiring. / Cáp nguồn linh hoạt và không chứa halogen để nối dây bảng điện.
Hãng sản xuất: TOP CABLE
Xuất Xứ: Spain
TOXFREE ZH ES05Z1-K and H07Z1-K (AS) is a LSHF safety cable. In the event of fire, it does not emit toxic gases, nor does it give off corrosive gases, avoiding any possible damage to people or electronic equipment. For these reasons it is highly recommended for use in public places such as: hospitals, schools, museums, airports, bus terminals, shopping malls, offices, laboratories, etc.
TOXFREE ZH ES05Z1-K and H07Z1-K (AS) cable performance
Electrical performance
LOW VOLTAGE 300/500 V · 450/750 V
RATED VOLTAGE ES05Z1-K/H05Z1-K (up to 1 mm2): 300/500 V · H07Z1-K (from 1,5 mm2 onwards): 450/750 V.
Standard
EN 50525-3-31 / UNE 211002
Approvals
AENOR / HAR / CE / RoHS / UKCA
CPR Construction Products Regulation
B2ca s1a, d1, a1 (cable H07Z1-K)
Thermal performance
Maximum conductor temperature: 70ºC (EN 50525-3-31).
Maximum short-circuit temperature: 160ºC (max. 5 s).
Minimum service temperature: -40ºC (fixed and protected installations).
Fire performance
Flame non-propagation based on EN 60332-1 and IEC 60332-1.
Fire non-propagation based on EN 60332-3 and IEC 60332-3.
LSHF (Low Smoke Halogen Free) based on EN 60754-1 and IEC 60754-1.
Low smoke emission based on EN 61034 and IEC 61034: Light transmittance > 80%
Low corrosive gases emission based on EN 60754-2 and IEC 60754-2.
Reaction to fire CPR: B2ca s1a, d1, a1 (cable H07Z1-K) , according to EN 50575.
Mechanical performance
Minimum bending radius: x5 cable diameter.
Chemical performance
Chemical & Oil resistance: Acceptable.
Other
Meter by meter marking. (from 10mm2 onwards)
Applications
Domestic use.
Electrical panel wiring.
Public places.
Packaging
Small cross sections (from 0,75 mm2 to 6 mm2) are supplied in high-resistant boxes. Medium cross sections (from 10 mm2 to 35 mm2) are supplied in 100 m sealed coils. Greater cross sections (>35 mm2) are supplied in drums.
TOXFREE ZH ES05Z1-K and H07Z1-K (A)S cable design
Conductor
Electrolytic annealed copper, class 5 (flexible), based on EN 60228 and IEC 60228.
Insulation
Polyolefin, halogen free and low smoke under fire conditions, type TIZ1 according to UNE 211002 and type TI7 according to EN 50363-7.
The standard identification of insulated conductors is the following:
Light Blue – Xanh lam (RAL 5012) ; Brown – Nâu (RAL 8003) ; Black – Đen (RAL 9005) ; Red – Đỏ (RAL 3000) ; Green/Yellow – Xanh lục/vàng (RAL 1021 / RAL 6018) ; Grey – Xám (RAL 7000) ; Dark Blue – Xanh đậm (RAL 5010) ; White – Trắng (RAL 9010) ; Orange – Cam (RAL 2003) ; Purple – Tím (RAL 4005) ; Pink – Hồng (RAL 3015) ; Yellow – Vàng (RAL 1021) ; Green – Xanh lá (RAL 6018) ; Beige – Be (RAL 1001) .
Other colors available on request
TOP CABLE TOXFREE® ZH ES05Z1-K (AS) & H07Z1-K(AS)
| Cross-Section (mm2) |
Diameter (mm) |
Weight (kg/km) |
In conduit 2 cond. (A) 1 |
In conduit 3 cond. (A) 1 |
Voltage drop (V/A · km) 2 |
| 1 x 0,75 | 2,3 | 11 | 11 | – | 62,4 |
| 1 x 1 | 2,5 | 13 | 14 | – | 46,8 |
| 1 x 1,5 | 2,9 | 20 | 17,5 | 15,5 | 31,9 |
| 1 x 2,5 | 3,6 | 30 | 24 | 21 | 19,2 |
| 1 x 4 | 4,1 | 45 | 32 | 28 | 11,9 |
| 1 x 6 | 4,7 | 65 | 41 | 36 | 7,92 |
| 1 x 10 | 6 | 110 | 57 | 50 | 4,58 |
| 1 x 16 | 7 | 160 | 76 | 68 | 2,9 |
| 1 x 25 | 8,8 | 250 | 101 | 89 | 1,87 |
| 1 x 35 | 9,9 | 340 | 125 | 110 | 1,33 |
| 1 x 50 | 11,8 | 480 | 151 | 134 | 0,926 |
| 1 x 70 | 13,5 | 660 | 192 | 171 | 0,653 |
| 1 x 95 | 15,6 | 875 | 232 | 207 | 0,494 |
| 1 x 120 | 17 | 1.100 | 269 | 239 | 0,386 |
| 1 x 150 | 18,9 | 1.375 | 300 | 262 | 0,31 |
| 1 x 185 | 21,5 | 1.680 | 341 | 296 | 0,254 |
| 1 x 240 | 24,5 | 2.205 | 400 | 346 | 0,192 |
1 Reference method B1 for two and three loaded conductors installed in conduit on a wall according to IEC60364-5-52 in open air at 30°C ambient temperature.
2 At 70°C conductor temperature, cos φ= 1 and single-phase circuit.
