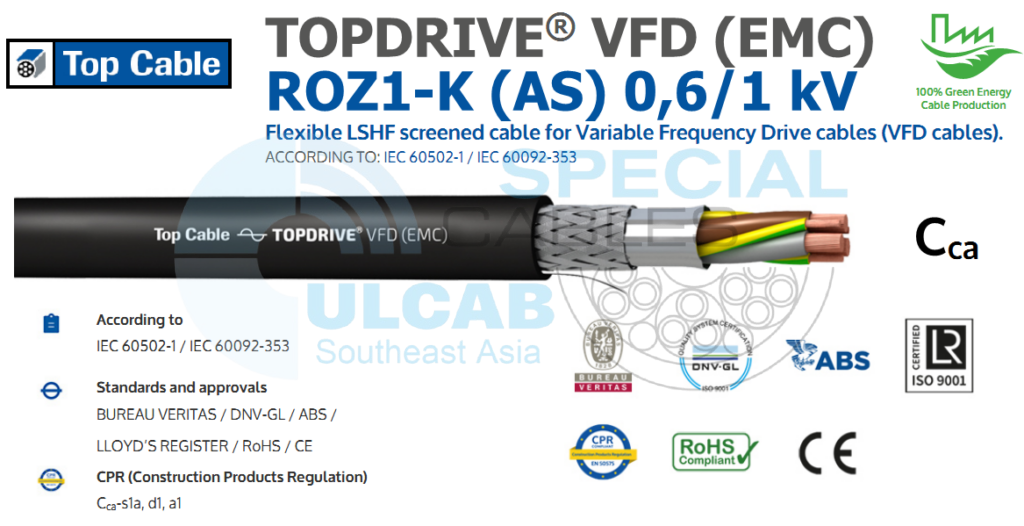

TOPDRIVE® VFD (EMC) ROZ1-K (AS) 0,6/1 kV
Flexible EMC LSZH screened cable for Variable Frequency Drive motors (VFD cables). / Cáp được sàng lọc EMC LSZH linh hoạt dành cho động cơ Truyền động tần số thay đổi (cáp VFD).
Hãng sản xuất: TOP CABLE
Xuất Xứ: Spain
TOPDRIVE VFD (EMC) ROZ1-K (AS) 0,6/1kV cable has been specially designed for Variable Frequency Drive Motors and installations where it is necessary to limit the effects of electromagnetic interference (EMI). This is a flexible cable for fixed installations, for variable speed motors or pumps.
TOPDRIVE VFD (EMC) ROZ1-K (AS) cable performance
Electrical performance
LOW VOLTAGE 0,6/1 kV
Standard
IEC 60502-1 / IEC 60092-353
Approvals
BUREAU VERITAS / DNV-GL / ABS / LLOYD’S REGISTER / RoHS / CE / UKCA
CPR Construction Product Regulation
Cca – s1a, d1, a1
Thermal performance
Maximum conductor temperature: 90ºC.
Maximum short-circuit temperature: 250ºC (max. 5 s).
Minimum service temperature: -40ºC (fixed and protected installations).
Fire performance
Flame non-propagation based on EN 60332-1 and IEC 60332-1.
Fire non-propagation based on EN 60332-3/IEC 60332-3 and EN 50399.
Reaction to fire CPR: Cca – s1a, d1, a1 , according to EN 50575.
LSHF (Low Smoke Halogen Free) according to EN 60754-1 and IEC 60754-1.
Low smoke emission based on EN 61034 and IEC 61034.
Light transmittance > 80%
Low corrosive gases emission based on EN 60754-2 and IEC 60754-2.
Mechanical performance
Minimum bending radius: x10 cable diameter.
Impact resistance: AG2 Medium severity.
Environmental performance
Chemical & Oil resistance: Acceptable.
UV resistant based on EN 50618.
Water resistance: AD5 Jets.
Other
Meter by meter marking.
Ripcord.
Electric fields resistant.
Installation conditions
Open Air.
Buried.
In conduit.
Applications
Industrial use.
Variable Frequency Drive (VFD).
Electromagnetic protection.
TOPDRIVE® VFD (EMC) ROZ1-K (AS) cable design
Conductor
Electrolytic annealed copper conductor, class 5 (flexible), according to EN 60228 and IEC 60228.
Protective Conductor
The ground conductor is divided into three conductors; the equivalent cross-section is approximately 50% of the section of the phase conductor. For 4G cables, ground conductor has the same cross-section as the phase conductors.
Insulation
Cross-linked polyethylene type HF XLPE 90ºC according to IEC 60092-360. The standard identification of insulated conductors is the following:
3 x + 3 G Grey + Brown + Black +Green/yellow (3 G) (from 6mm2 onwards)
4 G Grey + Brown + Black + Green/yellow (up to 4 mm2)
Assembly of cores
For 3 x + 3 G cables, the three phase conductors are cabled helically with the three protective conductors distributed in the interstices. For 4 G cables, the three phase conductors and protection conductor are cabled helically.
Screen
Aluminium-polyester tape screen, helically placed over the insulated conductors. Over the tape there is a tinned copper braid screen. The tape and the braid act as a double screen to cut out all of the electromagnetic interference, with a minimum total section of 10% of the phase conductor, ensuring a total shielding coverage.
Outer sheath
Polyolefin LSHF outer sheath type SHF1 according to IEC 60092-360. black color. The ripcord allows you to tear the outer sheath without damaging the screen.

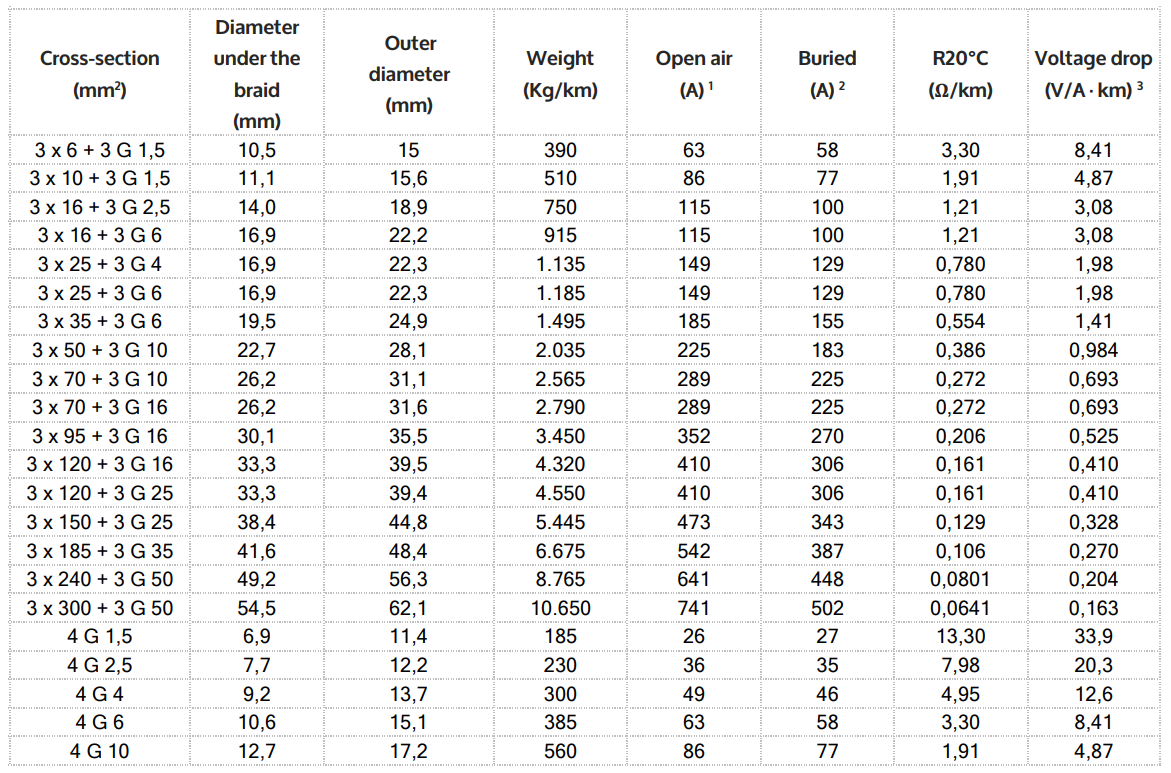

TOP CABLE TOPDRIVE® VFD (EMC) ROZ1-K (AS) 0,6/1 kV
| Cross-section (mm2) |
Diameter under the braid (mm) |
Outer diameter (mm) |
Weight (Kg/km) |
Open air (A) 1 |
Buried (A) 2 |
R20°C (Ω/km) |
Voltage drop (V/A · km) 3 |
| 3 x 6 + 3 G 1,5 | 10,5 | 15 | 390 | 63 | 58 | 3,3 | 8,41 |
| 3 x 10 + 3 G 1,5 | 11,1 | 15,6 | 510 | 86 | 77 | 1,91 | 4,87 |
| 3 x 16 + 3 G 2,5 | 14 | 18,9 | 750 | 115 | 100 | 1,21 | 3,08 |
| 3 x 16 + 3 G 6 | 16,9 | 22,2 | 915 | 115 | 100 | 1,21 | 3,08 |
| 3 x 25 + 3 G 4 | 16,9 | 22,3 | 1.135 | 149 | 129 | 0,78 | 1,98 |
| 3 x 25 + 3 G 6 | 16,9 | 22,3 | 1.185 | 149 | 129 | 0,78 | 1,98 |
| 3 x 35 + 3 G 6 | 19,5 | 24,9 | 1.495 | 185 | 155 | 0,554 | 1,41 |
| 3 x 50 + 3 G 10 | 22,7 | 28,1 | 2.035 | 225 | 183 | 0,386 | 0,984 |
| 3 x 70 + 3 G 10 | 26,2 | 31,1 | 2.565 | 289 | 225 | 0,272 | 0,693 |
| 3 x 70 + 3 G 16 | 26,2 | 31,6 | 2.790 | 289 | 225 | 0,272 | 0,693 |
| 3 x 95 + 3 G 16 | 30,1 | 35,5 | 3.450 | 352 | 270 | 0,206 | 0,525 |
| 3 x 120 + 3 G 16 | 33,3 | 40 | 4.320 | 410 | 306 | 0,161 | 0,41 |
| 3 x 120 + 3 G 25 | 33,3 | 39 | 4.550 | 410 | 306 | 0,161 | 0,41 |
| 3 x 150 + 3 G 25 | 38,4 | 44,8 | 5.445 | 473 | 343 | 0,129 | 0,328 |
| 3 x 185 + 3 G 35 | 41,6 | 48,4 | 6.675 | 542 | 387 | 0,106 | 0,27 |
| 3 x 240 + 3 G 50 | 49,2 | 56,3 | 8.765 | 641 | 448 | 0,0801 | 0,204 |
| 3 x 300 + 3 G 50 | 54,5 | 62,1 | 10.650 | 741 | 502 | 0,0641 | 0,163 |
| 4 G 1,5 | 6,9 | 11,4 | 185 | 26 | 27 | 13,3 | 33,9 |
| 4 G 2,5 | 7,7 | 12,2 | 230 | 36 | 35 | 7,98 | 20,3 |
| 4 G 4 | 9,2 | 14 | 300 | 49 | 46 | 4,95 | 12,6 |
| 4 G 6 | 10,6 | 15,1 | 385 | 63 | 58 | 3,3 | 8,41 |
| 4 G 10 | 12,7 | 17,2 | 560 | 86 | 77 | 1,91 | 4,87 |
1 Reference method F for single-core and method E for multicore cables according to IEC 60364-5-52 in open air at 30°C ambient temperature.
2 Reference method D2 according to IEC 60364-5-52. Directly buried at 0,7 m depth with soil thermal resistivity of 2,5 K·m/W and 20°C of ground temperature.
3 At maximum service temperature and cosj=1.
In all cases it is supposed a single-phase circuit.
