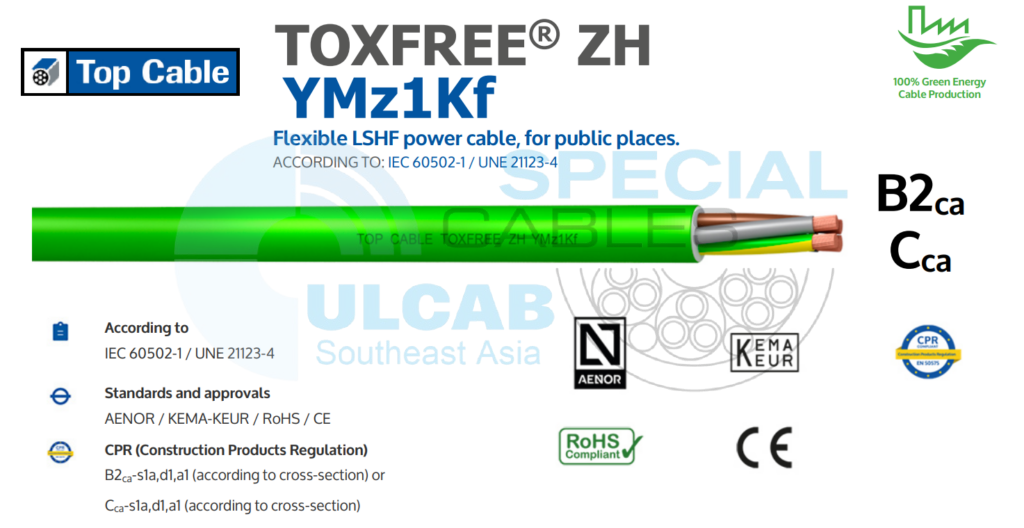

TOXFREE ZH YMz1Kf
Flexible halogen free (LSHF) power cable for public places. / Cáp nguồn linh hoạt không chứa halogen (LSHF) dành cho nơi công cộng.
Hãng sản xuất: TOP CABLE
Xuất Xứ: Spain
TOXFREE ZH YMz1Kf is a LSHF safety cable. In the event of fire, it does not emit toxic gases, nor does it give off corrosive gases, avoiding any possible damage to people or electronic equipment. For these reasons it is highly recommended for use in public places such as: hospitals, schools, museums, airports, bus terminals, shopping malls, offices, laboratories, etc.
TOXFREE ZH YMz1Kf cable performance
Electrical performance
LOW VOLTAGE 0,6/1kV
Standard
IEC 60502-1 / UNE 21123-4
Approvals
AENOR / SEC / KEMA KEUR / CE / RoHS
CPR (Construction Product Regulation)
B2ca s1a, d1, a1 or Cca s1a, d1, a1 (according to cross-section)
Thermal performance
Maximum conductor temperature: 90ºC.
Maximum short-circuit temperature: 250ºC (max. 5 s).
Minimum service temperature: -40ºC (fixed and protected installations).
Minimum installation and handling temperature: -0ºC.
Fire performance
Flame non-propagation according to EN 60332-1/IEC 60332-1.
Fire non-propagation according to EN 60332-3/IEC 60332-3 and EN 50399.
LSHF (Low Smoke Halogen Free) based on EN 60754-1/IEC 60754-1.
Low smoke emission based on UNE-EN 61034 and IEC 61034: Light transmittance > 80%.
Low corrosive gases emission based on EN 60754-2/IEC 60754-2.
Reaction to fire CPR: B2ca s1a, d1, a1 or Cca s1a, d1, a1 (see cross-section), according to EN 50575.
Mechanical performance
Minimum bending radius: x5 cable diameter.
Impact resistance: AG2 Medium severity.
Environmental performance
Chemical & Oil resistance: Acceptable.
UV Resistant according to EN 50618.
Water resistance: AD8 Submersion.
Other
Meter by meter marking.
Installation conditions
Open Air.
Buried.
In conduit.
Applications
Industrial use.
Public places.
Packaging
Available in rolls (lengths of 100 m) and drums.
TOXFREE ZH YMz1Kf cable design
Conductor
Electrolytic annealed copper conductor, class 5 (flexible), according to EN 60228 and IEC 60228.
Insulation
Cross-linked polyethylene type XLPE according to IEC 60502-1 and type DIX-3 according to HD 603. The standard identification of insulated conductors according to HD 308 is the following:
1 x Natural
2 x Blue + Brown
3 G Blue + Brown + Green/Yellow
3 x Brown + Black + Grey
3 x + 1 x Brown + Black + Grey + Blue (reduced cross-section)
4 G Brown + Black + Grey + Green/Yellow
4 x Brown + Black + Grey + Blue
5 G Brown + Black + Grey + Blue + Green/Yellow
6 G or more Black numbered + Green/Yellow
Outer sheath
Low Smoke Halogen Free (LSHF) polyolefin outer sheath, type ST8 according to IEC 60502- 1 and type DMZ-E according to UNE 21123-4. Green color.
TOP CABLE TOXFREE ZH YMz1Kf
| Cross-section (mm2) |
Diameter (mm) |
Weight (kg/km) |
Open air (A) 1 |
Buried (A) 2 |
Voltage drop (V/A · km) 3 |
| 1 x 2,5 | 7,1 | 75 | 39 | 35 | 20,3 |
| 1 x 4 | 7,6 | 95 | 53 | 46 | 12,6 |
| 1 x 6 | 8,2 | 120 | 68 | 58 | 8,41 |
| 1 x 10 | 9,1 | 165 | 93 | 77 | 4,87 |
| 1 x 16 | 10,1 | 225 | 124 | 100 | 3,08 |
| 1 x 25 | 11,3 | 305 | 161 | 129 | 1,98 |
| 1 x 35 | 12,2 | 400 | 200 | 155 | 1,41 |
| 1 x 50 | 13,9 | 535 | 242 | 183 | 0,984 |
| 1 x 70 | 15,8 | 730 | 310 | 225 | 0,693 |
| 1 x 95 | 17,6 | 945 | 377 | 270 | 0,525 |
| 1 x 120 | 19,5 | 1185 | 437 | 306 | 0,410 |
| 1 x 150 | 21,7 | 1470 | 504 | 343 | 0,328 |
| 1 x 185 | 23,8 | 1770 | 575 | 387 | 0,270 |
| 1 x 240 | 26,7 | 2310 | 679 | 448 | 0,204 |
| 1 x 300 | 29,5 | 2905 | 783 | 502 | 0,163 |
| 1 x 400 | 34,2 | 3825 | 930 | 592 | 0,123 |
| 1 x 500 | 37,9 | 4885 | 1.07 | 670 | 0,097 |
| 1 x 630 | 43,1 | 6410 | 1.232 | 762 | 0,073 |
| 2 x 1,5 | 9,3 | 125 | 26 | 27 | 33,9 |
| 2 x 2,5 | 9,8 | 145 | 36 | 35 | 20,3 |
| 2 x 4 | 10,8 | 190 | 49 | 46 | 12,6 |
| 2 x 6 | 11,8 | 245 | 63 | 58 | 8,41 |
| 2 x 10 | 13,6 | 355 | 86 | 77 | 4,87 |
| 2 x 16 | 15,3 | 495 | 115 | 100 | 3,08 |
| 3 G 1,5 | 10,4 | 155 | 26 | 27 | 33,9 |
| 3 G 2,5 | 10,9 | 190 | 36 | 35 | 20,3 |
| 3 G 4 | 11,9 | 240 | 49 | 46 | 12,6 |
| 3 G 6 | 13,0 | 310 | 63 | 58 | 8,41 |
| 3 G 10 | 14,8 | 450 | 86 | 77 | 4,87 |
| 3 x 16 | 16,8 | 645 | 115 | 100 | 3,08 |
| 3 x 25 | 21,4 | 1020 | 149 | 129 | 1,98 |
| 3 x 35 | 23,8 | 1345 | 185 | 155 | 1,41 |
| 3 x 50 | 27,2 | 1825 | 225 | 183 | 0,984 |
| 3 x 70 | 30,3 | 2470 | 289 | 225 | 0,693 |
| 3 x 95 | 35,2 | 3245 | 352 | 270 | 0,525 |
| 3 x 120 | 39,1 | 4095 | 410 | 306 | 0,410 |
| 3 x 150 | 43,9 | 5105 | 473 | 343 | 0,328 |
| 3 x 185 | 48,6 | 6195 | 542 | 387 | 0,270 |
| 3 x 16 + 1 x 10 | 19,1 | 800 | 115 | 100 | 3,08 |
| 3 x 25 + 1 x 16 | 22,5 | 1165 | 149 | 129 | 1,98 |
| 3 x 35 + 1 x 16 | 24,4 | 1480 | 185 | 155 | 1,41 |
| 3 x 50 + 1 x 25 | 28,6 | 2050 | 225 | 183 | 0,984 |
| 3 x 70 + 1 x 35 | 32,9 | 2815 | 289 | 225 | 0,693 |
| 3 x 95 + 1 x 50 | 37,1 | 3690 | 352 | 270 | 0,525 |
| 3 x 120 + 1 x 70 | 40,8 | 4700 | 410 | 306 | 0,410 |
| 3 x 150 + 1 x 70 | 45,9 | 5725 | 473 | 343 | 0,328 |
| 3 x 185 + 1 x 95 | 51,4 | 7000 | 542 | 387 | 0,270 |
| 3 x 240 + 1 x 120 | 58,6 | 9185 | 641 | 448 | 0,204 |
| 3 x 300 | 61,0 | 10180 | 741 | 502 | 0,163 |
| 4 G 1,5 | 11,2 | 180 | 26 | 27 | 33,9 |
| 4 G 2,5 | 11,9 | 225 | 36 | 35 | 20,3 |
| 4 G 4 | 12,9 | 290 | 49 | 46 | 12,6 |
| 4 G 6 | 14,3 | 380 | 63 | 58 | 8,41 |
| 4 G 10 | 16,3 | 565 | 86 | 77 | 4,87 |
| 4 x 16 | 18,8 | 815 | 115 | 100 | 3,08 |
| 4 x 25 | 23,8 | 1275 | 149 | 129 | 1,98 |
| 4 x 35 | 25,9 | 1700 | 185 | 155 | 1,41 |
| 4 x 50 | 30,1 | 2310 | 225 | 183 | 0,984 |
| 4 x 70 | 34,8 | 3185 | 289 | 225 | 0,693 |
| 4 x 95 | 39,9 | 4185 | 352 | 270 | 0,525 |
| 4 x 120 | 44,8 | 5305 | 410 | 306 | 0,410 |
| 4 x 150 | 49,3 | 6548 | 473 | 343 | 0,328 |
| 4 x 185 | 54,8 | 7965 | 542 | 387 | 0,270 |
| 4 x 240 | 61,7 | 10370 | 641 | 448 | 0,204 |
| 4 x 300 | 68,0 | 13055 | 741 | 502 | 0,163 |
| 5 G 1,5 | 12,6 | 230 | 26 | 27 | 33,9 |
| 5 G 2,5 | 13,2 | 275 | 36 | 35 | 20,3 |
| 5 G 4 | 14,4 | 355 | 49 | 46 | 12,6 |
| 5 G 6 | 15,9 | 470 | 63 | 58 | 8,41 |
| 5 G 10 | 18,0 | 685 | 86 | 77 | 4,87 |
| 5 G 16 | 20,9 | 1000 | 115 | 100 | 3,08 |
| 5 G 25 | 25,9 | 1550 | 149 | 129 | 1,98 |
| 5 G 35 | 28,3 | 2050 | 185 | 155 | 1,41 |
| 5 G 50 | 33,7 | 2840 | 225 | 183 | 0,984 |
| 5 G 70 | 38,6 | 3905 | 289 | 225 | 0,693 |
| 5 G 95 | 43,5 | 5080 | 352 | 270 | 0,525 |
| 5 G 120 | 49,5 | 6395 | 410 | 306 | 0,410 |
| 5 G 150 | 55,1 | 7935 | 473 | 343 | 0,328 |
| 5 G 185 | 61,1 | 9665 | 542 | 387 | 0,270 |
| 5 G 240 | 68,8 | 12620 | 641 | 448 | 0,204 |
1 Reference method F for single-core and method E for multicore cables according to IEC 60364-5-52 in open air at 30°C ambient temperature.
2 Reference method D2 according to IEC 60364-5-52. Directly buried at 0,7 m depth with soil thermal resistivity of 2,5 K·m/W and 20°C of ground temperature.
3 At maximum service temperature and cosj=1.
In all cases it is supposed a single-phase circuit.
