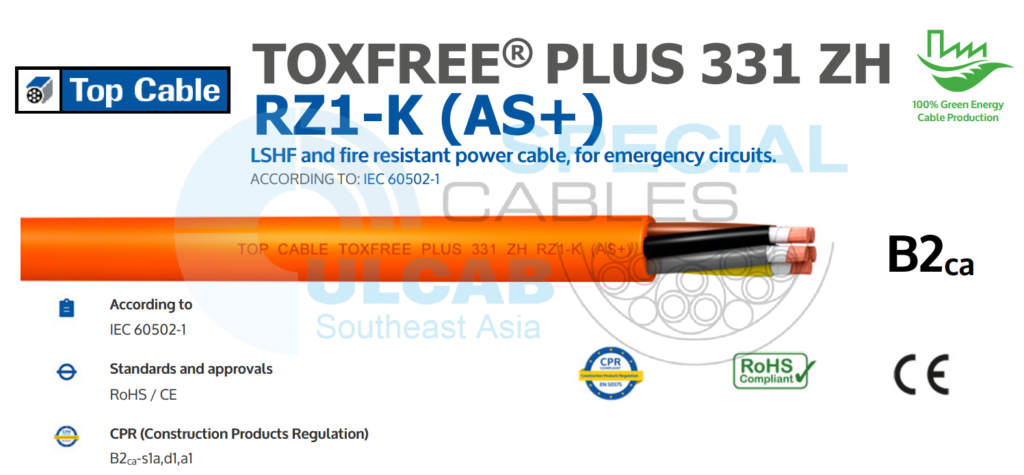

TOXFREE PLUS 331 ZH RZ1-K (AS+)
LSHF and fire resistant power cable, for emergency circuits. / LSHF và cáp nguồn chống cháy, dùng cho mạch khẩn cấp.
Hãng sản xuất: TOP CABLE
Xuất Xứ: Spain
TOXFREE Plus 331 ZH RZ1-K (AS+) is a fire resistant cable, specially designed to ensure the power supply to emergency circuits in the event of fire. During a fire you need critical circuits to work for life safety (signaling lights, fume extractors, acustic alarms, water pumps, etc) and a secure plant shutdown. For this reason, its use is highly recommended in public places such as: hospitals, tunnels, offices, production plants, laboratories, hotels, etc.
TOXFREE PLUS 331 ZH RZ1-K (AS+) cable performance
Electrical performance
LOW VOLTAGE 0,6/1kV
Standard
IEC 60502-1
Approvals
CE/ RoHS
CPR Construction Products Regulations B2ca-s1a, d1, a1 (according to cross-section) or Cca-s1b,d1,a1 (according to cross-section).
Thermal performance
Maximum conductor temperature: 90ºC.
Maximum short-circuit temperature: 250ºC (max. 5 s).
Minimum service temperature: -40ºC (fixed and protected installations).
Mechanical performance
Minimum bending radius: x5 cable diameter.
Impact resistance: AG2 Medium severity.
Chemical performance
Chemical & Oil resistance: Acceptable.
Water performance
Water resistance: AD5 Jets.
Fire performance
Flame non-propagation based on EN 60332-1 and IEC 60332-1.
Fire non-propagation based on EN 60332-3, IEC 60332-3 and EN 50399.
Fire resistant: (PH120) mínimum 120 minutes at 840ºC: Based on EN 50200 and IEC 60331-2 for Ø cable ≤ 20 mm.
Based on EN 50362 and IEC 60331-1 for Ø cable > 20 mm. 180’ at 950ºC (cat C) category C,W & Z based on BS6387.
Fire resistant 180’ at 950ºC (cat C) category C,W & Z based on BS6387 (300/500V).
LSHF (Low Smoke Halogen Free) based on EN 60754-1 and IEC 60754-1.
Low smoke emission based on EN 61034 and IEC 61034: Light transmittance > 60%
Low corrosive gases emission based on EN 60754-2 and IEC 60754-2.
Other
Meter by meter marking.
Installation conditions
Open Air.
Buried.
In conduit.
Applications
Industrial use.
Emergency circuits
Public places.
TOXFREE PLUS 331 ZH RZ1-K (AS+) cable design
Conductor
Electrolytic annealed copper, class 5 (flexible), based on EN 60228 and IEC 60228.
Insulation
Mica tape + Cross-linked polyethylene type DIX-3 according to HD 603.
The standard identification of insulated conductors according to HD 308 is the following:
1 x Natural
2x Blue + Brown
3 x Blue + Brown + Grey
3 x + 1 x Brown + Black + Grey + Blue (reduced cross-section)
4 x Brown + Black + Grey + Blue
5 G Brown + Black + Grey + Green/yellow + Blue
Outer sheath
Low Smoke Halogen Free (LSHF) polyolefin. Orange color, non-toxic, fire retardant and fire resistant.
TOP CABLE TOXFREE PLUS 331 ZH RZ1-K (AS+)
| Cross-section (mm2) |
Diameter (mm) |
Weight (kg/km) |
Open air (A) 1 |
Buried (A) 2 |
Voltage drop (V/A · km) 3 |
| 1 x 2,5 | 7,4 | 80 | 39 | 35 | 20,3 |
| 1 x 4 | 7,9 | 100 | 53 | 46 | 12,6 |
| 1 x 6 | 8,4 | 125 | 68 | 58 | 8,41 |
| 1 x 10 | 9,4 | 170 | 93 | 77 | 4,87 |
| 1 x 16 | 10,4 | 230 | 124 | 100 | 3,08 |
| 1 x 25 | 11,8 | 315 | 161 | 129 | 1,98 |
| 1 x 35 | 13,0 | 415 | 200 | 155 | 1,41 |
| 1 x 50 | 14,4 | 550 | 242 | 183 | 0,984 |
| 1 x 70 | 16,2 | 745 | 310 | 225 | 0,693 |
| 1 x 95 | 18,0 | 960 | 377 | 270 | 0,525 |
| 1 x 120 | 20,2 | 1205 | 437 | 306 | 0,410 |
| 1 x 150 | 22,1 | 1490 | 504 | 343 | 0,328 |
| 1 x 185 | 24,3 | 1790 | 575 | 387 | 0,270 |
| 1 x 240 | 26,9 | 2320 | 679 | 448 | 0,204 |
| 1 x 300 | 30,0 | 2950 | 783 | 502 | 0,163 |
| 1 x 400 | 34,8 | 3815 | 930 | 592 | 0,123 |
| 1 x 500 | 38,5 | 4865 | 1.07 | 670 | 0,097 |
| 1 x 630 | 43,7 | 6385 | 1.232 | 762 | 0,073 |
| 2 x 1,5 | 10,2 | 150 | 26 | 27 | 33,9 |
| 2 x 2,5 | 10,4 | 165 | 36 | 35 | 20,3 |
| 2 x 4 | 11,4 | 215 | 49 | 46 | 12,6 |
| 2 x 6 | 12,3 | 270 | 63 | 58 | 8,41 |
| 2 x 10 | 14,6 | 395 | 86 | 77 | 4,87 |
| 2 x 16 | 16,6 | 550 | 115 | 100 | 3,08 |
| 3 G 1,5 | 11,3 | 185 | 26 | 27 | 33,9 |
| 3 G 2,5 | 11,6 | 210 | 36 | 35 | 20,3 |
| 3 G 4 | 12,5 | 265 | 49 | 46 | 12,6 |
| 3 G 6 | 13,5 | 340 | 63 | 58 | 8,41 |
| 3 G 10 | 15,3 | 480 | 86 | 77 | 4,87 |
| 3 x 16 | 17,7 | 685 | 115 | 100 | 3,08 |
| 3 x 25 | 22,5 | 1075 | 149 | 129 | 1,98 |
| 3 x 35 | 25,5 | 1425 | 185 | 155 | 1,41 |
| 3 x 50 | 28,3 | 1895 | 225 | 183 | 0,984 |
| 3 x 70 | 31,1 | 2535 | 289 | 225 | 0,693 |
| 4 G 1,5 | 12,2 | 215 | 26 | 27 | 33,9 |
| 4 G 2,5 | 12,4 | 250 | 36 | 35 | 20,3 |
| 4 G 4 | 13,6 | 320 | 49 | 46 | 12,6 |
| 4 G 6 | 15,1 | 420 | 63 | 58 | 8,41 |
| 4 G 10 | 17,1 | 605 | 86 | 77 | 4,87 |
| 4 x 16 | 19,5 | 860 | 115 | 100 | 3,08 |
| 4 x 25 | 25,0 | 1345 | 149 | 129 | 1,98 |
| 4 x 35 | 27,3 | 1765 | 185 | 155 | 1,41 |
| 4 x 50 | 31,3 | 2395 | 225 | 183 | 0,984 |
| 4 x 70 | 36,2 | 3285 | 289 | 225 | 0,693 |
| 4 x 95 | 40,4 | 4230 | 352 | 270 | 0,525 |
| 4 x 120 | 46,0 | 5390 | 410 | 306 | 0,410 |
| 4 x 150 | 50,6 | 6675 | 473 | 343 | 0,328 |
| 4 x 185 | 56,5 | 8150 | 542 | 387 | 0,270 |
| 4 x 240 | 62,2 | 10465 | 641 | 448 | 0,204 |
| 5 G 1,5 | 13,6 | 265 | 26 | 27 | 33,9 |
| 5 G 2,5 | 13,8 | 300 | 36 | 35 | 20,3 |
| 5 G 4 | 15,0 | 385 | 49 | 46 | 12,6 |
| 5 G 6 | 16,4 | 500 | 63 | 58 | 8,41 |
| 5 G 10 | 18,6 | 725 | 86 | 77 | 4,87 |
| 5 G 16 | 21,5 | 1045 | 115 | 100 | 3,08 |
| 5 G 25 | 27,2 | 1630 | 149 | 129 | 1,98 |
| 5 G 35 | 30,5 | 2155 | 185 | 155 | 1,41 |
| 5 G 50 | 35,0 | 2945 | 225 | 183 | 0,984 |
1 Reference method F for single-core and method E for multicore cables according to IEC 60364-5-52 in open air at 30°C ambient temperature.
2 Reference method D2 according to IEC 60364-5-52. Directly buried at 0,7 m depth with soil thermal resistivity of 2,5 K·m/W and 20°C of ground temperature.
3 At maximum service temperature and cosj=1. For all cables is supposed a single-phase circuit
