Electrical performance

LOW VOLTAGE  300/500 V  ·  450/750 V

RATED VOLTAGE ES05Z1-K/H05Z1-K (up to 1 mm2): 300/500 V · H07Z1-K (from 1,5 mm2 onwards): 450/750 V.

Standard

EN 50525-3-31 / UNE 211002

Approvals

AENOR / HAR / CE / RoHS / UKCA

CPR Construction Products Regulation

B2_ca s1a, d1, a1 (cable H07Z1-K)

Thermal performance

Maximum conductor temperature: 70ºC (EN 50525-3-31).

Maximum short-circuit temperature: 160ºC (max. 5 s).

Minimum service temperature: -40ºC (fixed and protected installations).

Fire performance

Flame non-propagation based on EN 60332-1 and IEC 60332-1.

Fire non-propagation based on EN 60332-3 and IEC 60332-3.

LSHF (Low Smoke Halogen Free) based on  EN 60754-1 and IEC 60754-1.

Low smoke emission based on EN 61034 and IEC 61034: Light transmittance > 80%

Low corrosive gases emission based on EN 60754-2 and IEC 60754-2.

Reaction to fire CPR: B2_ca s1a, d1, a1 (cable H07Z1-K) , according to EN 50575.

Mechanical performance

Minimum bending radius: x5 cable diameter.

Chemical performance

Chemical & Oil resistance: Acceptable.

Other

Meter by meter marking. (from 10mm2 onwards)

Applications

Domestic use.

Electrical panel wiring.

Public places.

Packaging

Small cross sections (from 0,75 mm2 to 6 mm2) are supplied in high-resistant boxes. Medium cross sections (from 10 mm2 to 35 mm2) are supplied in 100 m sealed coils. Greater cross sections (>35 mm2) are supplied in drums.

TOXFREE ZH ES05Z1-K and H07Z1-K (A)S cable design

Conductor

Electrolytic annealed copper, class 5 (flexible), based on EN 60228 and IEC 60228.

Insulation

Polyolefin, halogen free and low smoke under fire conditions, type TIZ1 according to UNE 211002 and type TI7 according to EN 50363-7.

The standard identification of insulated conductors is the following:

Light Blue – Xanh lam (RAL 5012) ; Brown – Nâu (RAL 8003) ; Black – Đen (RAL 9005) ; Red – Đỏ (RAL 3000) ; Green/Yellow – Xanh lục/vàng (RAL 1021 / RAL 6018) ; Grey – Xám (RAL 7000) ; Dark Blue – Xanh đậm (RAL 5010) ; White – Trắng (RAL 9010) ; Orange – Cam (RAL 2003) ; Purple – Tím (RAL 4005) ; Pink – Hồng (RAL 3015) ; Yellow – Vàng (RAL 1021) ; Green – Xanh lá (RAL 6018) ; Beige – Be (RAL 1001) .

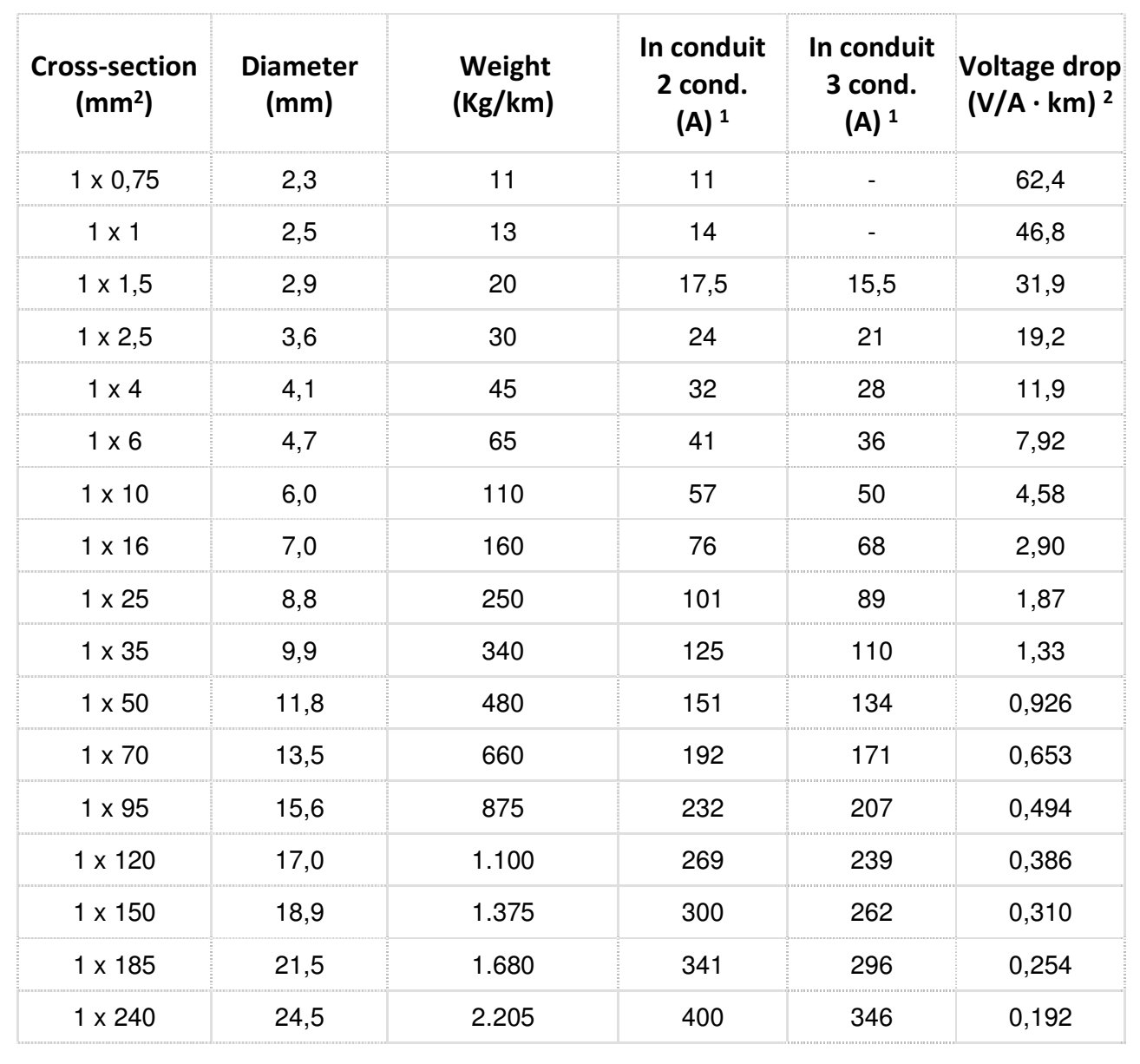

DIMENSIONS & ADMISSIBLE INTENSITIES

1 Reference method B1 for two and three loaded conductors installed in conduit on a wall according to IEC60364-5-52 in open air at 30°C ambient temperature.

2 At 70°C conductor temperature, cos φ= 1 and single-phase circuit.
