Cáp Cao Su TOP CABLE 450/750V XTREM H07RN-F BLACK | Chính Hãng – Cáp Bơm Chìm AD8 – Giá Tốt Nhất
Hãng sản xuất: TOP CABLE
Xuất Xứ: Spain
Flexible rubber cable, for industrial use./ Cáp cao su mềm, dùng trong công nghiệp.
Xtrem® H07RN-F rubber cables are designed to supply power to low voltage appliances including electric motors and submersible pumps in deep water installations as well as many other types of electrical equipment. Thanks to its extraordinary flexibility and mechanical strength, the Xtrem® H07RN-F cable is ideal for power transmission in both fixed installation or mobile service. The nominal voltage up to 1000 V thanks to the high dielectric properties of the insulation material (according to HD 516). Top Cable Xtrem® H07RN-F cables are designed to power all types of electrical equipment including motors and submersible pumps in deep water installations (AD8).
XTREM® H07RN-F cable performance
Electrical performance
LOW VOLTAGE 450/750 V
Standard
EN 50525-2-21 / IEC 60092-353 / IEC 60245
Approvals
AENOR / HAR / DNV / CE / RoHS
Safe drinking water certificate
Construction Products Regulation (CPR)
Eca
Thermal performance
Maximum conductor temperature: 90ºC.
Maximum short-circuit temperature: 250ºC (max. 5 s).
Minimum service temperature: -40ºC (fixed and protected installations) and -25ºC (mobile use)
Fire performance
Flame non-propagation based on EN 60332-1 and IEC 60332-1.
Reaction to fire CPR: Eca, according to EN 50575.
Mechanical performance
Minimum bending radius: 3 x cable diameter (up to 12 mm2). 4 x cable diameter (from 12 mm2 onwards).
Impact resistance: AG2 Medium severity.
Chemical performance
Chemical & Oil resistance: Excellent.
Grease & mineral oils resistance: Excellent.
Water performance
Water resistance: AD8 Submersion.
Cable for submersible pumps in drinkable water based on AS/NZS 4020.
Deep wells
Drinkable water
AWQC.
Other
Meter by meter marking.
Installation conditions
Open Air.
Submersible pumps cable.
Applications
Industrial use.
Mobile use.
Robotics.
Wind turbines
Temporary site installations.
Packaging
Available in rolls of 100 m. and drums.
XTREM H07RN-F cable design
Conductor
Electrolytic copper, class 5 (flexible), based on EN 60228 and IEC 60228.
Insulation
Rubber (type EI7 according to EN 50363-1).
The standard identification according to HD 308 and EN 50334 is the following:
1 x Natural
2 x Blue + Brown
3 G Blue + Brown + Yellow/Green
3 x Brown + Black + Grey
4 G Brown + Black + Grey + Yellow/Green
4 x Brown + Black + Grey + Blue
5 G Brown + Black + Grey + Blue + Yellow/Green
6 or more Black numbered + Yellow/Green
Outer sheath
Flexible rubber, type EM2 according to EN 50363-2-1. Black color.

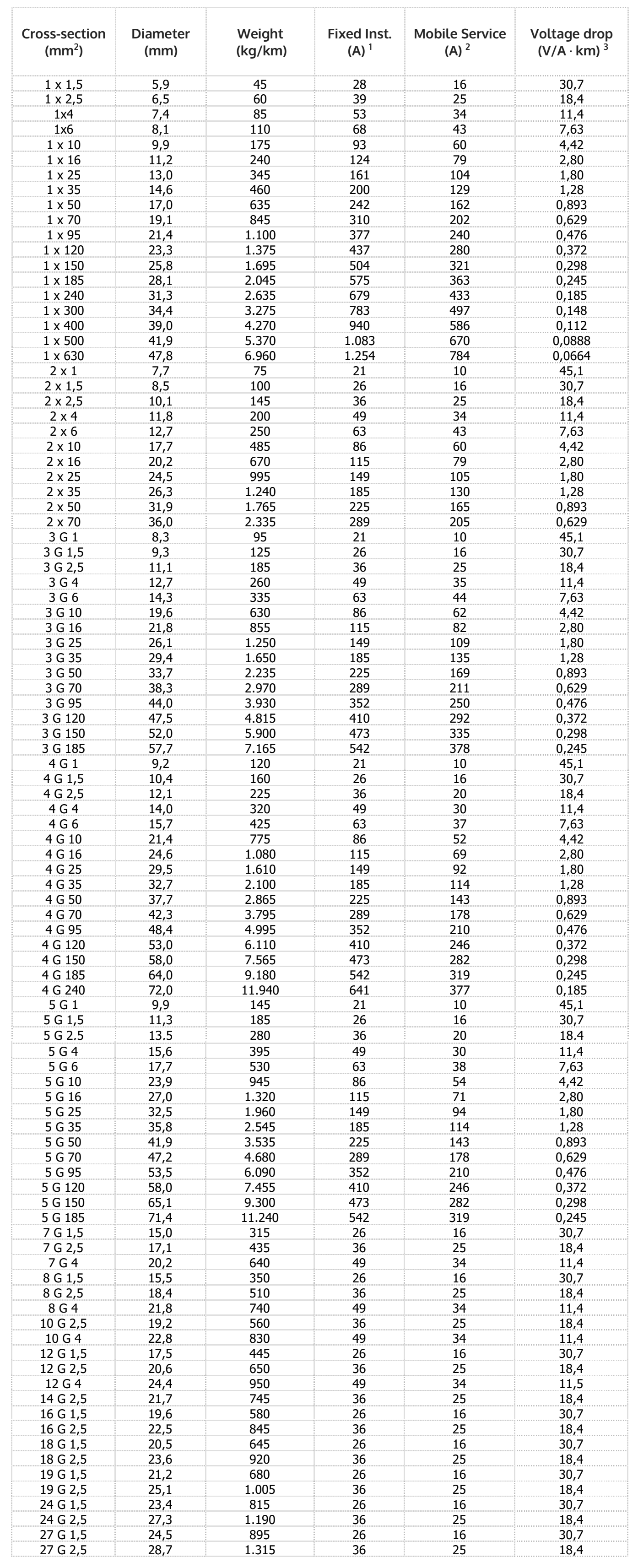

DIMENSIONS & ADMISSIBLE INTENSITIES
1 Reference method F for single-core and method E for multicore cables according to IEC60364-5-52 in open air at 30°C ambient temperature. It is supposed a single-phase circuit.
2 One cable in open air at 30°C ambient temperature according to EN 50565. For cables having 4 or 5 cores, it is supposed a three-phase circuit. For the rest of the cables it is supposed a single-phase circuit.
3 At 60°C conductor temperature, cos φ= 1 and single-phase circuit.
