DÂY CÁP TÍN HIỆU CC-LINK KÈM NGUỒN KURAMO PW110SBH 3C x 20AWG + 2C x 0.75㎟ 75℃ UL AWM Style 2464 CSA C22.2 No.210 VW-1 FT1 Brown | Chính Hãng – Giá Tốt Nhất

Hãng Sản Xuất: KURAMO ELECTRIC

Xuất Xứ: MADE IN JAPAN

Dây cáp tín hiệu truyền thông CC-LINK kèm nguồn KURAMO PW110SBH được sử dụng Dây dẫn đồng ủ mềm, với 3 lõi dẫn tín hiệu size 20AWG cách điện: PEF màu Blue, White, Yellow + 2 lõi nguồn 0.75mm2 cách điện: PVC chịu nhiệt màu Black, White, Chống nhiễu: Aluminum/polyester laminate tape + Tin coated annealed copper braid, Vỏ bọc ngoài PVC chịu dầu, chịu nhiệt màu Brown.

Product Description

For Quotation, please click the Contact Us button below.

(1coil/100m≒328ft) Basically 100m MOQ,

Cutting under 100m or Made to order should be confirm with us.

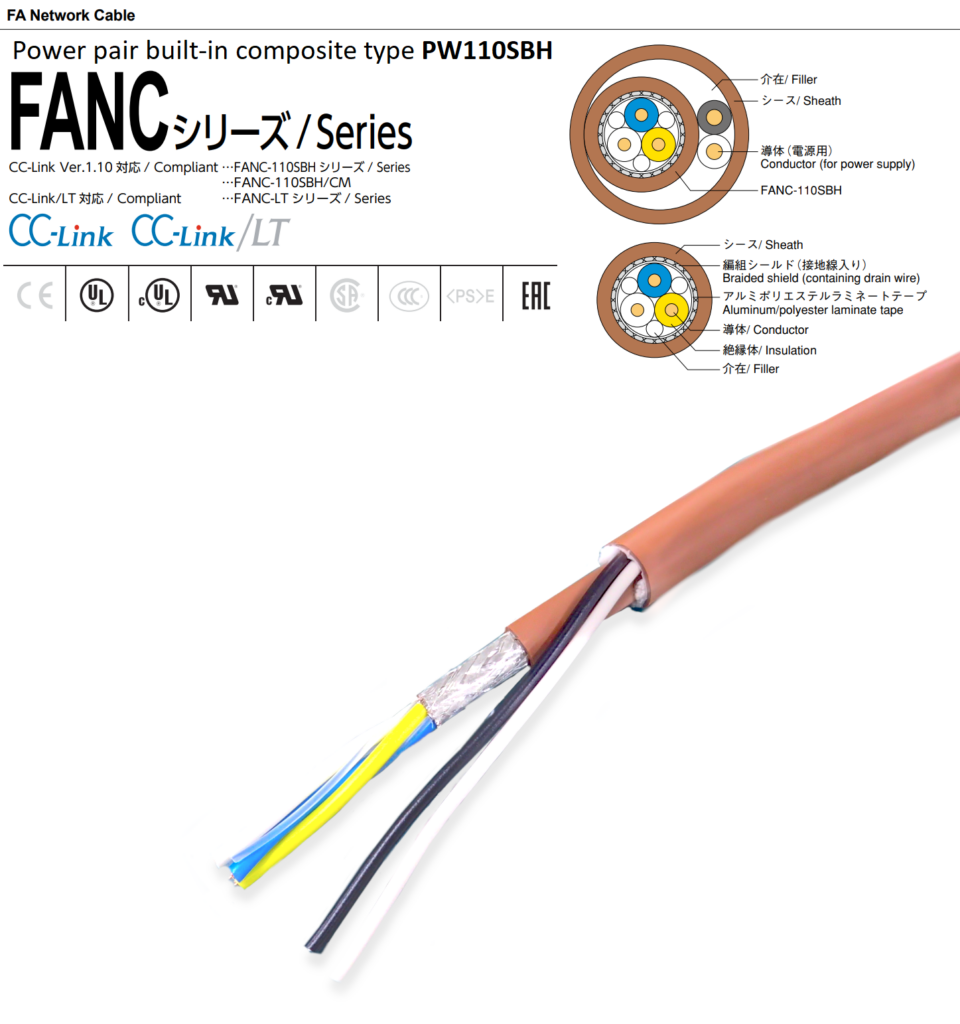

The FANC-110SBH Series are FA network cables designed to comply with CC-Link Ver.1.10. The FANC-110SBH Series, when used to network CC-Link Ver.1.10 compliant equipment, allows the formation of a network subject to less restriction in cable connection than the FANC-SB Series (CC-Link Ver.1.00 compliant). FANC110SBH as standard of this series and its power pair built-in composite type, PW110BH, are certified to comply with the UL/cUL AWM requirements.

Use

■ Wiring between the equipment and equipment which adapted to CC-Link Ver. 1.10.

Certification

cRUus – EAC

Features

■ Double shield, 10Mbps transmission, RS-485 compliance
■ Availability in a large variety of types to meet various application requirements
※For details, refer to each cable’s Specifications given below.
■The movable type FANC-110SBZ-5 cable is designed so that its transmittable distance is 50% that of its standard counterpart.
※The use of the cable at high ambient temperature may cause its transmittable distance to be shortened.
※ The PW110SBH’s power pair (0.75㎟ ) is required to be used at a voltage less than 100V in such applications as DC24V power supply for remote I/O.

Specifications

Technical data

■ (20℃）Conductor resistance: 34.5 Ω /㎞（ for communication ）+ 25.1 Ω /㎞（ for power supply ）

■ (5MHz）Characteristic impedance: 110 Ω

■ (5MHz, 20℃）Attenuation: 3.5dB/100m

■ Temperature rating: 75℃

■ Application: Power pair built-in composite type

■ Sheath diameter: Approx. 12㎜

■ Approx. weight: 145 kg/㎞

■ Adaptation standard: UL AWM Style 2464; CSA C22.2; No.210

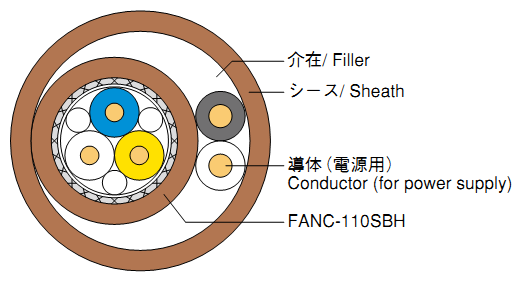

Construction

20AWG × 3（ for communication ）+ 0.75㎟× 2（ for power supply ）

Insulation: PEF（ for communication ）+ Heat resistant PVC（ for power supply ）

Insulation color: Blue, White, Yellow（ for communication ）+ Black, White（ for power supply ）

Shield: Aluminum/polyester laminate tape + Tin coated annealed copper braid

Sheath: Oil and heat resistant PVC mat type

Sheath color: Brown
