Dây Cáp Điện TAIYO UE/THHW LF 600V 90°C | Chính Hãng – Giá Tốt Nhất

Dây cáp điện và điều khiển tín hiệu single core TAIYO UE/THHW LF 600V được sử dụng dây dẫn Đồng ủ bị mắc kẹt; Size: 14AWG đến 400MCM; Cách điện: PVC chịu nhiệt; Màu sắc: đen (Black), xanh dương (Blue), nâu (Brown), xám (Grey), hồng (Pink), đỏ (Red), xanh nhạt (light blue), tím (Violed), trắng (White), vàng (Yellow), xanh lá cây (Green), vàng/xanh lá cây (Green/Yellow), cam (Orange), xanh dương/trắng (Blue/White) .

UE/THHW LF

Electric wire for general wiring/ Dây điện cho hệ thống dây điện chung

Hãng sản xuất: TAIYO Cabletec

Xuất Xứ: JAPAN

Heat resistance: ★★★★
Oil resistance: ★★★
Noise resistance: ★
Flame resistance: ★★★★
Flexibility: ★★
non-migratory: ★★★★
Transport property: ★
※The characteristic is an aim.

Application
Electric wire for North America and EU.
Passed the UL vertical tray flame-retardant test, it can be used in the cable tray, Raceway. and the race way,(circuit conductor=1/0AWG or more, grand conductor=4AWG or more).
Electric wire with UL and cUL at 600V, 90°C. (Category : ZKHZ, ZLGR, ZLGR7)
CE marking. (TÜV recognition product)
(Certificate of TÜV No.J50005945)
Obtaining UL Listed MTW, this wire compliants to NFPA 70 and 79.

Feature

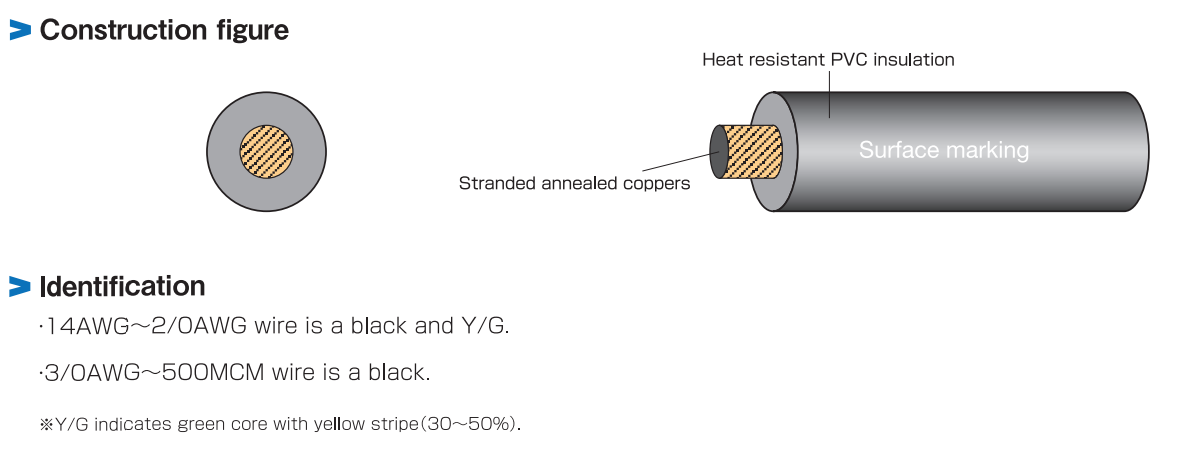

Heat resistant PVC used for insulation.
Flame resisting : UL VW-1, cUL FT1.

➤ Surface marking

(1)14AWG~10AWG (circuit conductor), 14AWG~10AWG(Y/G)

E242557 (UL) MTW FLEXING or THHW 600V ☐☐AWG VW-1 c (UL) TW75 600V ☐☐AWG (OOmm²) FT1 TAIYO CE 07V-K 450/750V LF R15

(2)8AWG~1AWG (circuit conductor), 8AWG~6AWG(Y/G)

E242557 (UL) MTW or THHW 600V ☐☐AWG VW-1 c (UL) TW75 600V ☐☐AWG (OOmm²) FT1 TAIYO CE 07V-K 450/750V LF R15

(3)1/0AWG or more (circuit conductor), 4AWG or more (Y/G)

E242557 (UL) MTW or THHW 600V ☐☐AWG CT c(UL) TW75 600V ☐☐AWG (OOmm²) FT1 TAIYO CE 07V-K 450/750V LF R15

※UE/THHW might give the separator.

*The examination of 2500V/5 minute besides the withstand voltage test on above mentioned UL standard and the CSA standard is applied.

➤ Allowable ampacity

. Allowable current of this catalog NFPA70 Table 310.15 (B) rated temperature 90 °C ambient temperature 30 °C.

. For the current correction factor, please refer to the P274.

. For please confirm the NFPA70 (National Electric cord) and NFPA79 (Electrical Standard for Industrial Machinery) more use.
