Dây cáp điện và điều khiển tín hiệu TAIYO STOOW(A)/TC-ER LF 600V 105°C BLACK được sử dụng dây dẫn bằng đồng ủ; Size: 0.75 – 30mm2; Vật liệu cách điện: PVC chịu dầu và nhiệt; Vỏ ngoài: PVC mềm dẻo, chịu dầu và nhiệt. Đạt Thử nghiệm ngọn lửa khay dọc của UL (Vỏ màu đen).

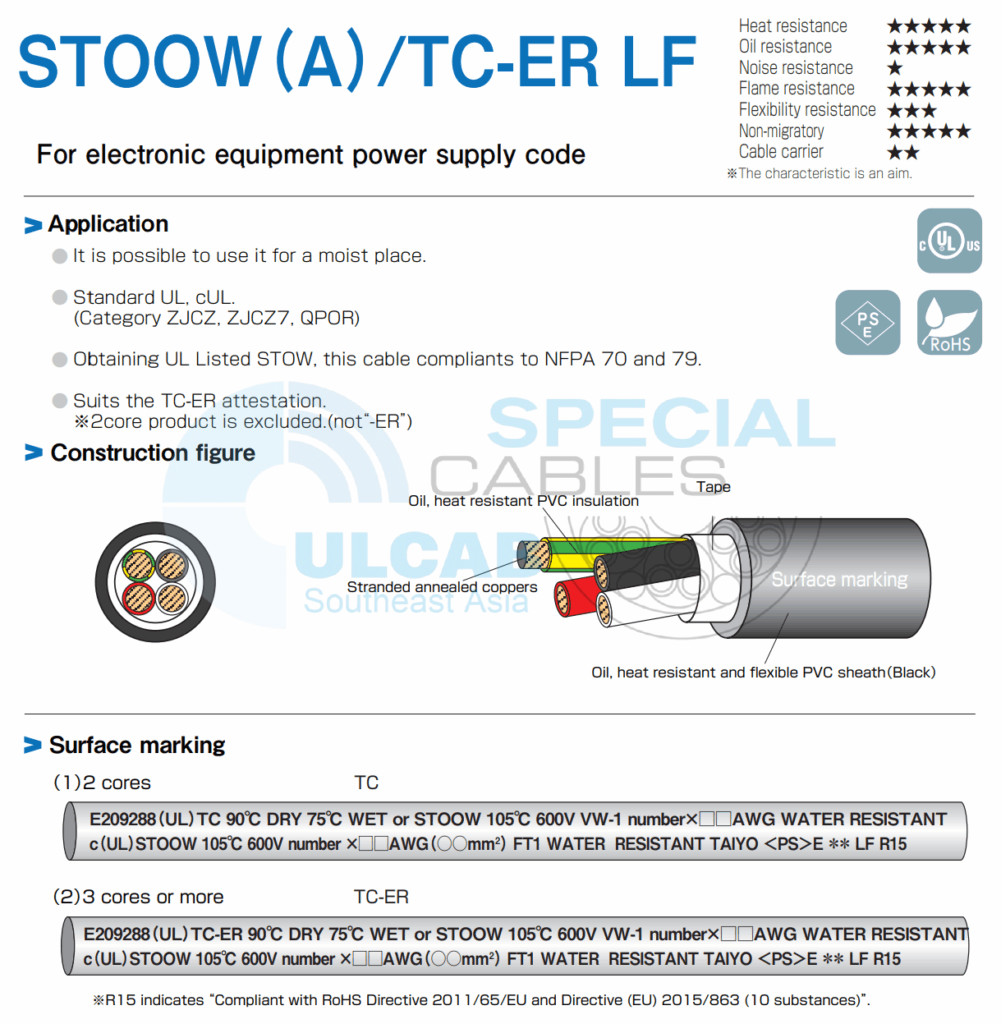

STOOW(A)/TC-ER LF
For electronic equipment power supply code/ Đối với mã nguồn cung cấp thiết bị điện tử
Hãng sản xuất: TAIYO Cabletec
Xuất Xứ: JAPAN
Heat resistance: ★★★★★
Oil resistance: ★★★★★
Noise resistance: ★
Flame resistance: ★★★★★
Flexibility: ★★★
non-migratory: ★★★★★
Transport property: ★★
※The characteristic is an aim.
Application
It is possible to use it for a moist place.
Feature
Standard UL, cUL.(Category ZJCZ, ZJCZ7, QPOR)
Obtaining UL Listed STOW, this cable compliants to NFPA 70 and 79.
Suits the TC-ER attestation.
※2core product is excluded.(not“-ER”)

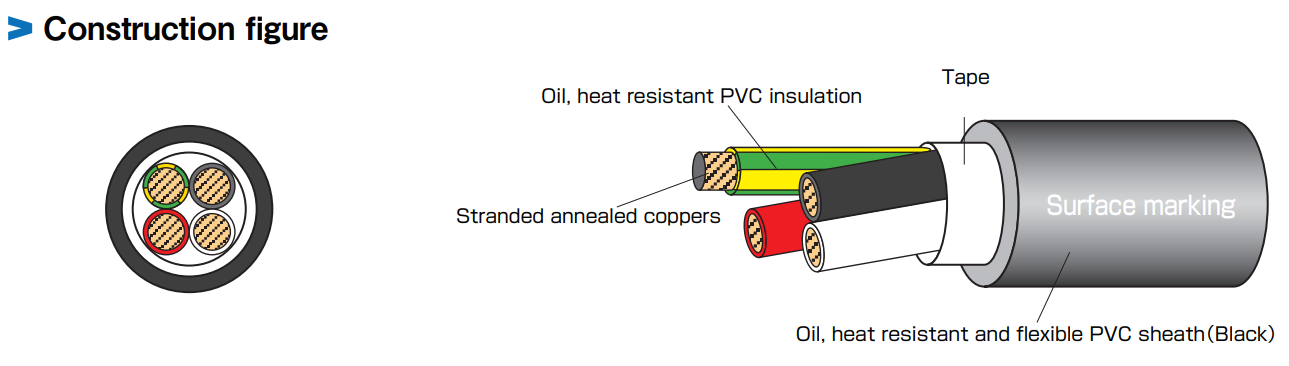

Oil and heat resistant PVC used for insulation.
Oil, heat resistant and flexible PVC sheath material is used.
It passes Vertical-Tray Flame Test of UL
| Certification | UL STOOW | cUL STOOW | UL TC | Electrical Appliance and Material Safety Law (18～10AWG) |
Electrical Appliance and Material Safety Law (8～2AWG |
| Applicable standard | UL 62 | CSA C22.2 No.49 | UL 1277 | Departmental order to determine a technical standard of the electrical equipment |
Departmental order to determine a technical standard of the electrical equipment |
| Official symbol | STOOW | STOOW | TC | Vinyl cab tire cord | Vinyl cab tire cord |
| Voltage rating | 600V | 600V | 600V | 300V | 600V |
| Temperature rating | 105℃ | 105℃ | DRY90℃ WET75℃ | 60℃ | 60℃ |
| Conductor | UL 62 | CSA C22.2 No.49 | UL 1277 | JIS C 3102 | JIS C 3102 |
| Flame rating | VW-1 | FT1 | Vertical-Tray Flame Test | JIS C 3005 4.26.2 b） | JIS C 3005 4.26.2 b） |
Surface marking
(1)2 cores TC
E209288 (UL) TC 90°C DRY 75°C WET or STOOW 105°C 600V VW-1 numberX AWG (○○mm²) WATER RESISTANT c(UL) STOOW 105°C 600V number × AWG (○○mm²) FT1 WATER RESISTANT TAIYO <PS>E ** LF R15
(2)3 cores or more TC-ER
E209288 (UL) TC-ER 90°C DRY 75°C WET or STOOW 105°C 600V VW-1 number× AWG (○○mm²) WATER RESISTANT c(UL) STOOW 105°C 600V number × AWG (○○mm²) FT1 WATER RESISTANT TAIYO <PS>E ** LF R15
※R15 indicates “Compliant with RoHS Directive 2011/65/EU and Directive (EU) 2015/863 (10 substances)”.

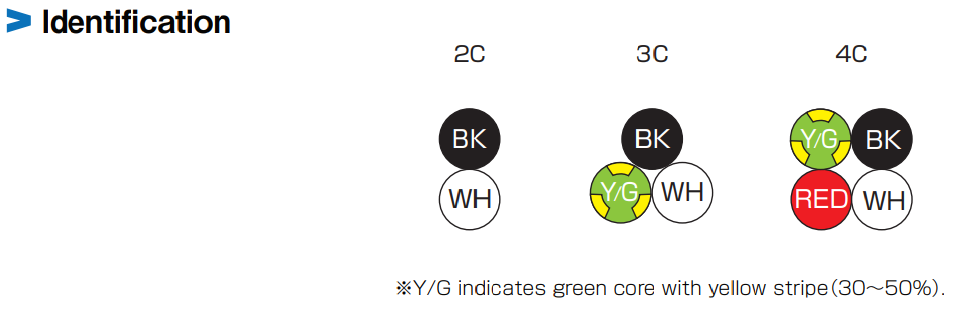

※3, 4 core has the ［Y/G］ earth cable of an equal size.
Allowable ampacity
・Allowable current of this catalog NFPA70 Table 400.5(A)(1) STO ambient temperature 30℃.
・For the current correction factor, please refer to the Technical document page.
・For please confirm the NFPA70(National Electrical cord) and NFPA79(Electrical Standard for Industrial Machinery) more use.
Electrical property

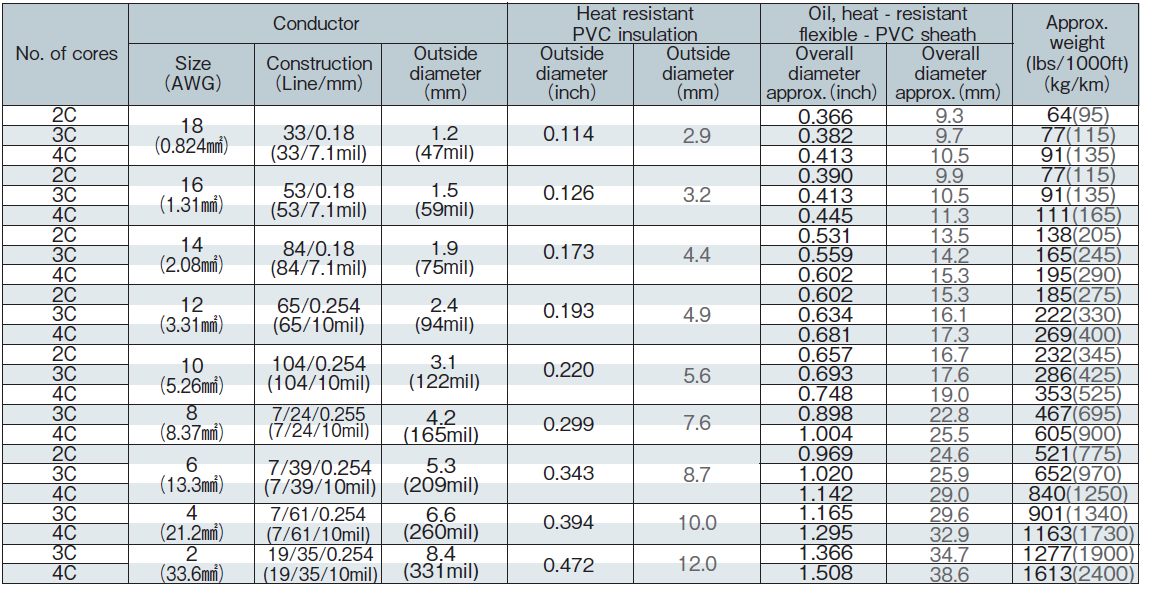

| Size （AWG） | Conductor resistance （Ω/km20℃） |
Insulation resistance （MΩkm15℃） |
Electrical strength （V/1min.） |
Allowable ampacity（A） | |
| a | b | ||||
| 18 | less than 22.1 | more than 52 | 2000 | 7 | 10 |
| 16 | less than 13.7 | more than 45 | 2000 | 10 | 13 |
| 14 | less than 8.64 | more than 50 | 3000 | 15 | 18 |
| 12 | less than 5.42 | more than 40 | 3000 | 20 | 25 |
| 10 | less than 3.42 | more than 34 | 3000 | 25 | 30 |
| 8 | less than 2.14 | more than 34 | 4000 | 35 | 40 |
| 6 | less than 1.34 | more than 29 | 4000 | 45 | 55 |
| 4 | less than 0.848 | more than 24 | 4000 | 60 | 70 |
| 2 | less than 0.533 | more than 20 | 4000 | 80 | 95 |
※Allowable ampacity By National Electrical Code(NEC）
a：Apply to 3-conductor cords and other multiconductor cords connected to utilization equipment so that only 3 conductors are current-carrying.
b：Apply to 2-conductor cords and other multiconductor cords connected to utilization equipment so that only 2 conductors are current-carrying.
